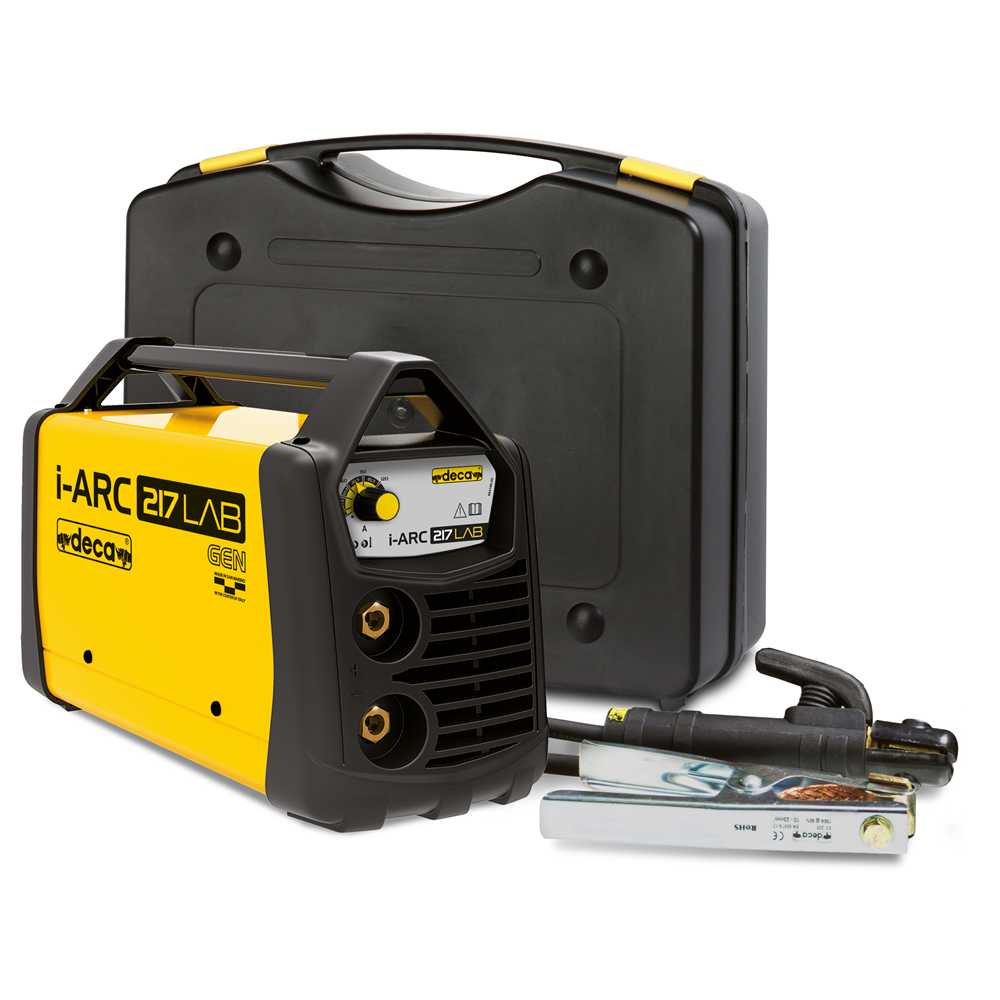

DECA I-ARC 217 LAB Electrode Welding Machine In Direct Current 1Ph - 230V - 50/60Hz

Description:

The DECA I-ARC 217 LAB is a compact and reliable welding machine, designed for maintenance work, small workshops, and versatile metal welding applications. Built in Italy with advanced engineering, it offers high performance and durability.

• Delivers up to 170 Amps in DC for electrodes from 1.6 to 4.0 mm.

• Compatible with rutile and basic coated electrodes for welding steel, stainless steel, and cast iron.

• TIG welding possible with special torch using "scratch" arc ignition.

• Equipped with input protections for stable performance even with unstable power sources, ideal when working with generators.

• Easy to use with built-in welding aids:

  • Hot Start: Easier arc striking.

  • Arc Force: Prevents electrode sticking by boosting current.

  • Anti-Sticking: Allows quick electrode release.

Technical Details:

• Welding Current Range: 10 – 170A

• Duty Cycle (20°C): 170A – 60%

• Duty Cycle (40°C): 170A – 20% / 100A – 60%

• Open Circuit Voltage: 88V

• Input Voltage: 230V – 1Ph – 50/60Hz

• Power Absorbed (60% / Max): 2.8 / 4.9 kW

• Fuse: 16A

• Generator: ±30% (7 kW)

• Efficiency: >80%

• Electrodes: Rutile Ø 1.6–4.0 mm / Basic Ø 2.0–4.0 mm / TIG Ø 1.0–4.0 mm

• Output Connection: DX 25 mm²

• Thermostatic Protection: Yes

Made in Italy – DECA
