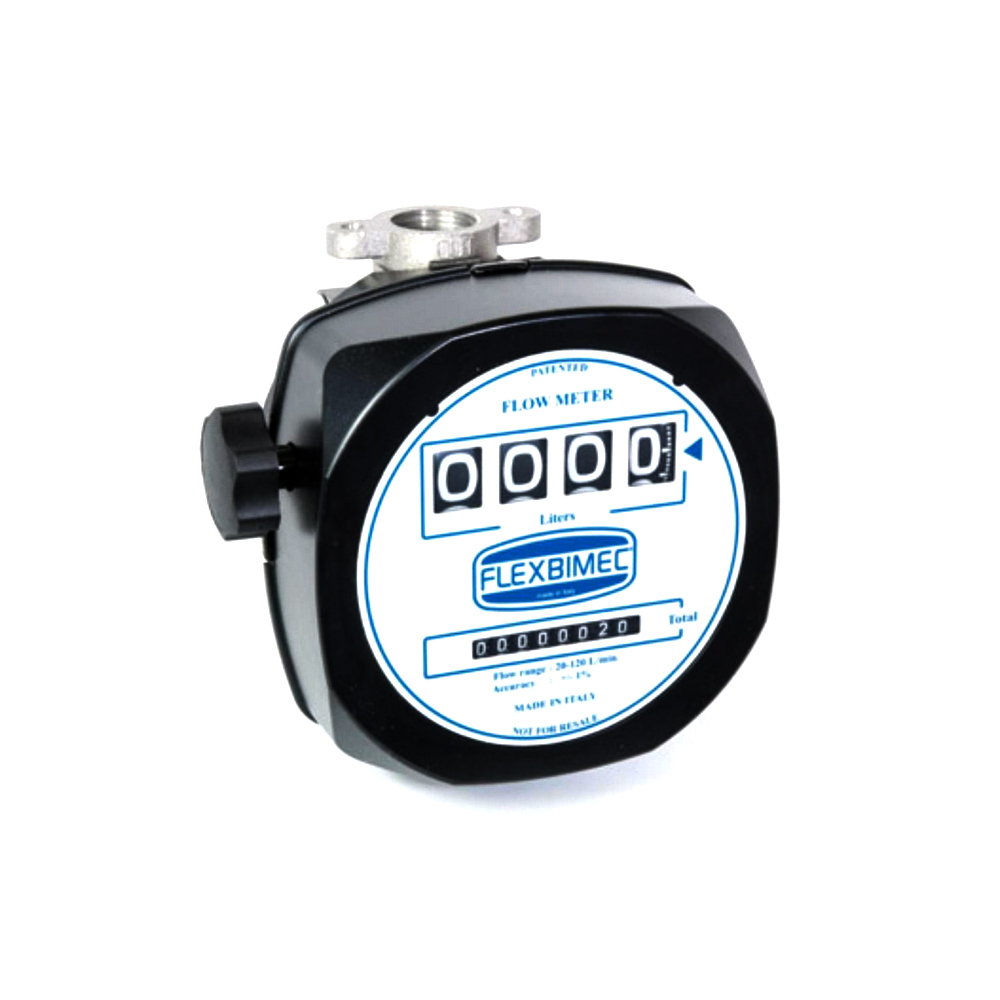

FLEXBIMEC 2865 Mechanical Diesel Flow Meter 1 Inch

Mechanical nutating – disk flow meter for diesel, body in aluminium, with 4 – digits partial meter (max. 9999 l; resettable to zero) and 6 – digits totalizer (non resettable). The meter can easily be calibrated and it can also be used for gravity applications. The upper part can be rotated so that every diff erent flow direction is possible.

Technical details:
Flow range : 20-120 l/min
Max working pressure : 10 bar
Accuracy : + - 0,5%
Resolution : 0,01 l
Connection threads : F1″ BSP
---------
Made in Italy
