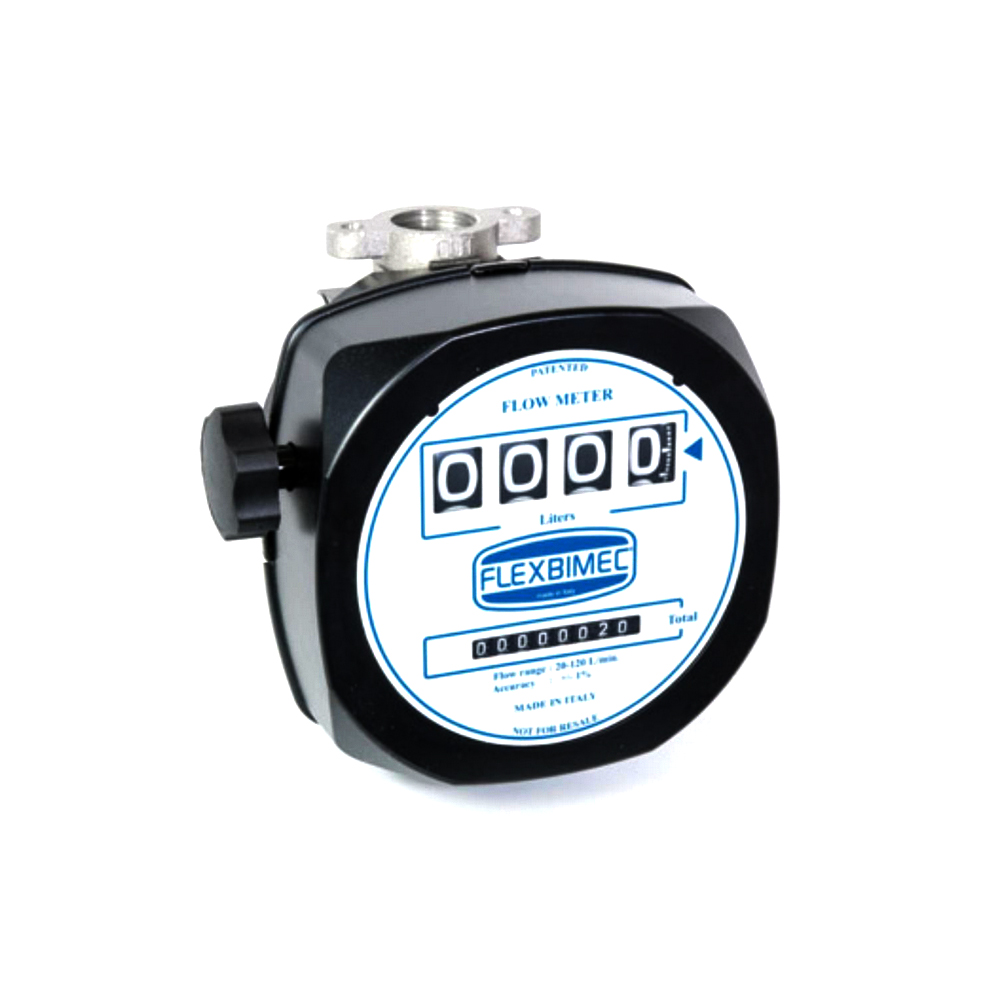

FLEXBIMEC 2868 Mechanical Diesel Flow Meter 1 Inch (ATEX)

Mechanical nutating – disk flow meter for petrol, kerosene and diesel, with 4 – digits partial meter (max. 9999 l; resettable to zero) and 8 – digits totalizer (non resettable). The meter can easily be calibrated and it can also be used for gravity applications. The upper part can be rotated so that different flow directions are possible. The flow meter is constructed in accordance with directive ATEX 94/9/EC – IECEx (group II – category 2 – G IIB T6) and so is suitable also for the use in environments with a high explosion risk.

Technical details:
Flow range : 20-120 l/min
Max working pressure : 3,5 bar
Burst pressure : 28 bar
Accuracy : +/-1%
Resolution : 0,01 l
Connection threads : F 1″ BSP
---------
Made in Italy
