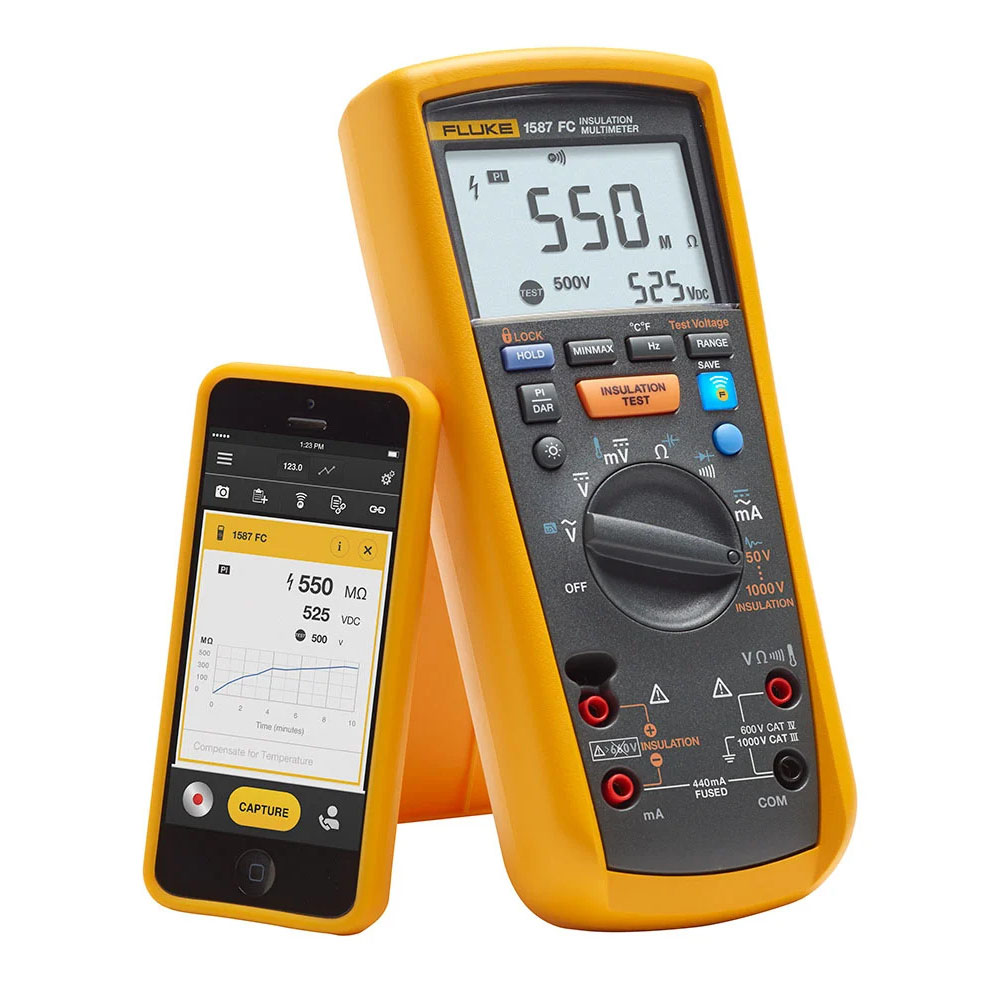

FLUKE 1587 Digital FC Insulation Multimeter

Fluke Connect + Fluke's 1587 FC Insulation Multimeter helps you identify tough problems, fix them, and wirelessly communicate your work quickly and easily - all at a safe distance.

Add diagnostics with Fluke Connect
The Fluke 1587 FC is Fluke Connect-enabled so you can download the free Fluke Connect® Measurements app to your smartphone and gain additional functions, including:

Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely.
Quickly seeing and sharing measurement results wirelessly with your smartphone.
Find problems by saving and comparing measurements over time on a wireless device.
PI/DAR timed ratio tests with TrendIt™ graphs to identify the moisture and contaminated insulation problems faster
Memory storage through Fluke Connect saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
Temperature compensation to establish accurate baselines and relevant historical comparisons
Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
Includes auto-discharge of capacitive voltage for added user protection
Measures ac/dc voltage, DC millivolts, ac/dc milliamps, resistance, and continuity
Includes capacitance, diode test, temperature, min/max, frequency measurements, and insulation test smoothing reading
Automatically powers off to save battery power
*Useful resources and rugged tools for Solar professionals*

Technical details:
CAT rating: CAT III 1000 V - CAT IV 600 V
True-RMS readings: yes
Voltage AC/DC: 1000 V
Current AC/DC: 400 mA
Resistance: 50 MΩ
Capacitance: 10,000 μF
Temperature: -40 °C to 537 °C
