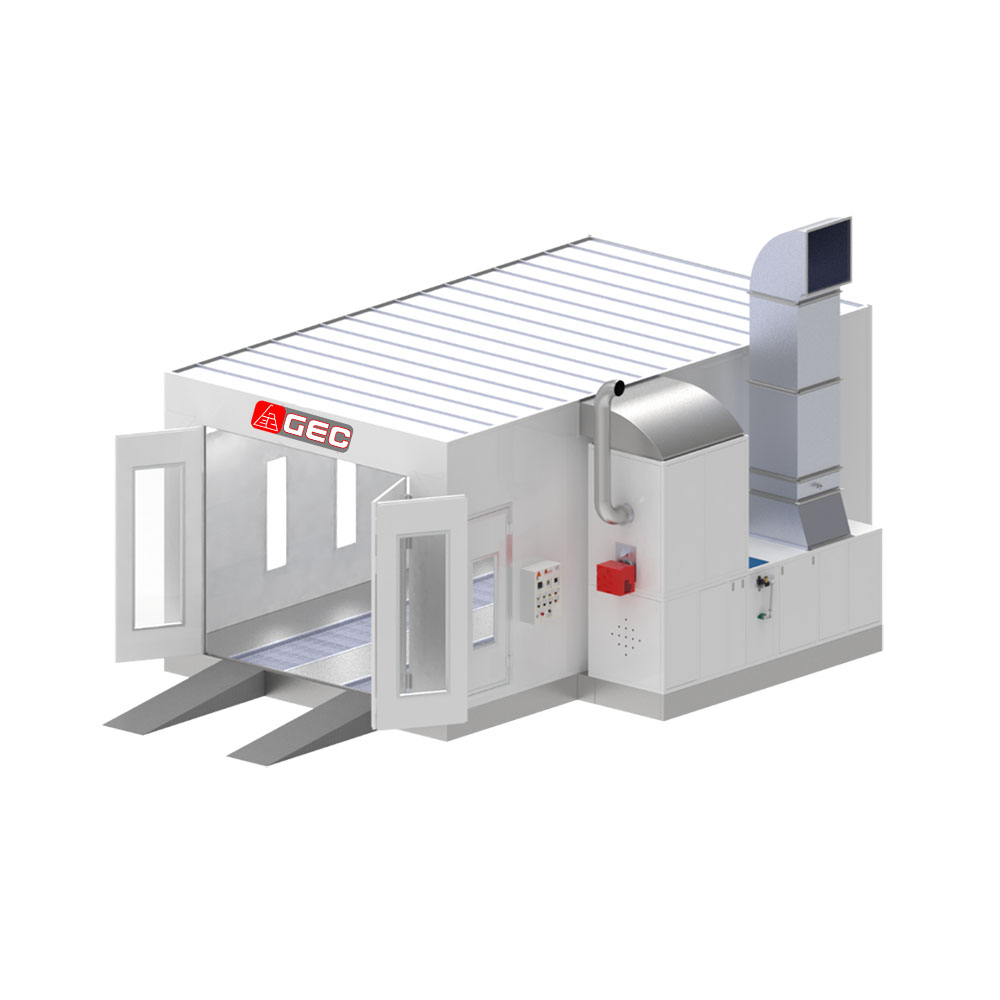

GEC C702 Spray Booth & Painting For Cars 4*6.9*2.8 Meters 380V

Features:
LOW NOISE: Cabins with low acoustic emission (<75 dB, 73 dB on average).
LED LIGHTS: Our cabins include high-brightness LED lighting (+1000 lux)
DOUBLE TURBINE: Limits vibrations at start-up and throughout operation, creating uniform airflow and eliminating turbulence
DOUBLE GLAZING: Double glazing with air chamber prevents heat loss, increasing temperature stability
LAMINATED GLASS: Laminated glass throughout the facility
COMPONENTS FROM TOP BRANDS: Frame made entirely with components from top European brands
HIGH MODULARITY: Flexible installations to fit into any space configuration to meet specific customer needs
EUROPEAN STANDARDS: Our products are 100% manufactured according to the CE standards
SPARE PARTS: Genuine spare parts to ensure optimal operation throughout the life of the equipment
SPECIALIZED TECHNICAL SERVICE: GEC own technical and after-sales service.

Technical details:

Dimensions:
LENGTH / 6.9
WIDTH / 4.000
HEIGHT / Outside 3.400 mm -- Inside 2.650 mm

Frontal Door:
3-wings / Width and height of passage / 3.000 x h.2.600 mm
Inspection windows / Shutters supplied with inspection windows and safety glasses / 550 × h.1800 mm
Personnel door / Width and height of passage / 800 x 2.000 mm.

Air Generator Unit:
Airflow: 24/25.000 m³/h
Motor power: 7,5 kW
Average air speed into the empty cabin: 0,25 m/s
Inside cabin noise level: <75 dB.73 dB average
Thermal power: 180.000 Kcal/h (200 KW)

Thermal equipment:
Burner consumption: Diesel (gasoil)
Recycling: YES
Max. temp. in drying phase: 80º

Air Extractor Unit:
Airflow: 24/26.000 m³/h
Motor power: 7,5 kW
Inside cabin noise level: <75 dB.73 dB average

Lighting:
No. of tubes/Lux:
- Upper lights: 8 fixtures x 4 pcs = 32 pcs Led lighting;
- Side lights: 8 fixtures x 2 pcs = 16 pcs Led lighting
Intensity: +950 Lux

Floor
Dimensions: 6.900 x 4000 x h. 300 mm.
Loads (Punctual/Distributed): 650 Kg per wheel print
Filters (Type): Paint-Stop / EU3

Power Requirements:
Power: 16 kW approx.
Tension: 400V-50Hz (3PH+N+PE)
