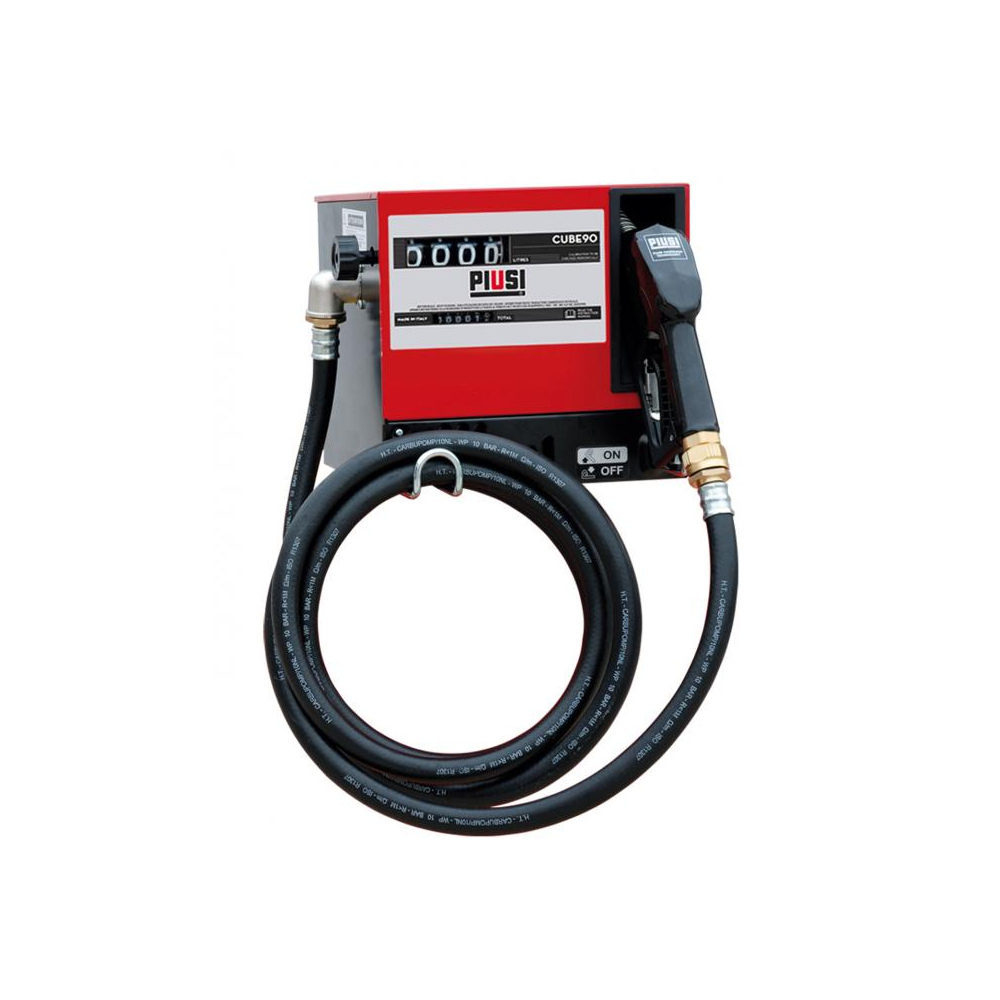

PIUSI CUBE 90 Diesel Fuel Dispenser With Automatic Start/Stop 90L/Min 700W 220V

The PIUSI CUBE is a range of mechanical fuel transfer dispensers, composed of a self-priming vane pump fitted with an integrated bypass valve, an automatic nozzle with a swivel connection, and an integrated nozzle holder with start/stop pump lever. Its versatility allows different applications: on walls, on tanks, on cisterns, on drums, or stand-alone.

Features:
• STURDY STRUCTURE
• MECHANICAL METER
• INDUCTION THERMAL-PROTECTED MOTOR
• OVERLOAD PROTECTION
• BUILT-IN MESH FILTER
• IP 55

Technical details:
- Flow rate: 90 L/MIN
- Voltage: 230V / 50 Hz
- Power: 700 Watt
- Amper: 4.9 Max
- Accuracy: ±1%
- Temperature:
- Pump: PANTH 90
- Meter: K44
- Hose LENGTH: 4 Metr 1”
- Type of fluid: DIESEL
- Inlet: 1” BSP
